CE Automatic High Carbon Wire Drawing Machine For Nail Screw Making

1 SET
MOQ
to be negotiated
Price
CE Automatic High Carbon Wire Drawing Machine For Nail Screw Making
Features Gallery Product Description Request A Quote
Features
Specifications
Name: High Speed Pulley Type Wire Drawing Machines
Power: 18.5-30KW
Weight: 2100kgs
Type: Dry Type
Inlet Diameter: B≥110
Voltage: 380/415/440/220
Dimension(L*W*H): 1400*1900*2600mm
Pulley: OTO
Key Selling Points: Low Noise Level
High Light:

CE automatic wire drawing machine

,

nail automatic wire drawing machine

,

screw high carbon wire drawing machine

Basic Infomation
Place of Origin: Jiangsu, China
Brand Name: DURA
Certification: CE
Model Number: LWS-560; LWS-450; LWS -400 (350)
Payment & Shipping Terms
Packaging Details: Nude Package or Steel Pallet Under Request
Delivery Time: 1-10 Sets/25 Days; >10 To Be Negotiated
Payment Terms: L/C, D/P, T/T
Supply Ability: 100 Sets Per Month
Product Description

High Speed Pulley Type Wire Drawing Machines​



1. Usage This Kind of machine is an ideal equipment applied to draw high-,medium- and low-carbon steel wire, as well as copper, alumium and alloy wire, the machine is applied to draw wires in nail, screw and rivet making factories etc. The speed of this kind is higher than the normal one, but the price of high speed pulley type wire drawing machine is lower than the straight line one.


2. Structure The equipment consists of main reduction box, die casing, wheel frame, wire brace and electrical control system. the spinning drawing blocks are driven by JZT or Y series motor, with gear coupling runs changeful gears to reduce speed. The drawing blocks are vertically fixed in sealed box body, the gear pair are lubricated with oil. In order to lower residual heat on the surface of the block, the cooling device is installed in inter-wall of the block.

3. The machine runs with carwl or linkage. The safety halt gear is installed by the position of operation block.

4. Technical specifications:
Items Unit LWS-560 LWS-450 LWS -400 (350)
Capstan diameter mm 560 450 400(350)
Max inlet diameter mm 6.5 4 3
Min outlet diameter mm 2 1 0.7
Inlet wire tensile strength mpa <1150 <1150 <1150
Drawing speed m/min. 492-540m/min 395-430m/min 400-500m/min
Required number of drawing pass 8 8 9

Average size reduction

percentage

%

about 25

about 23.04 about 23.5
Motor power kw 18.5-30 18.5-22 7.5-11
Weight kgs 2100 1600 1200-1300
Size mm 1400*1900*2600 1300*1850*2550



1300*1600*2500




Other machines and accessories for wire drawing production are available.

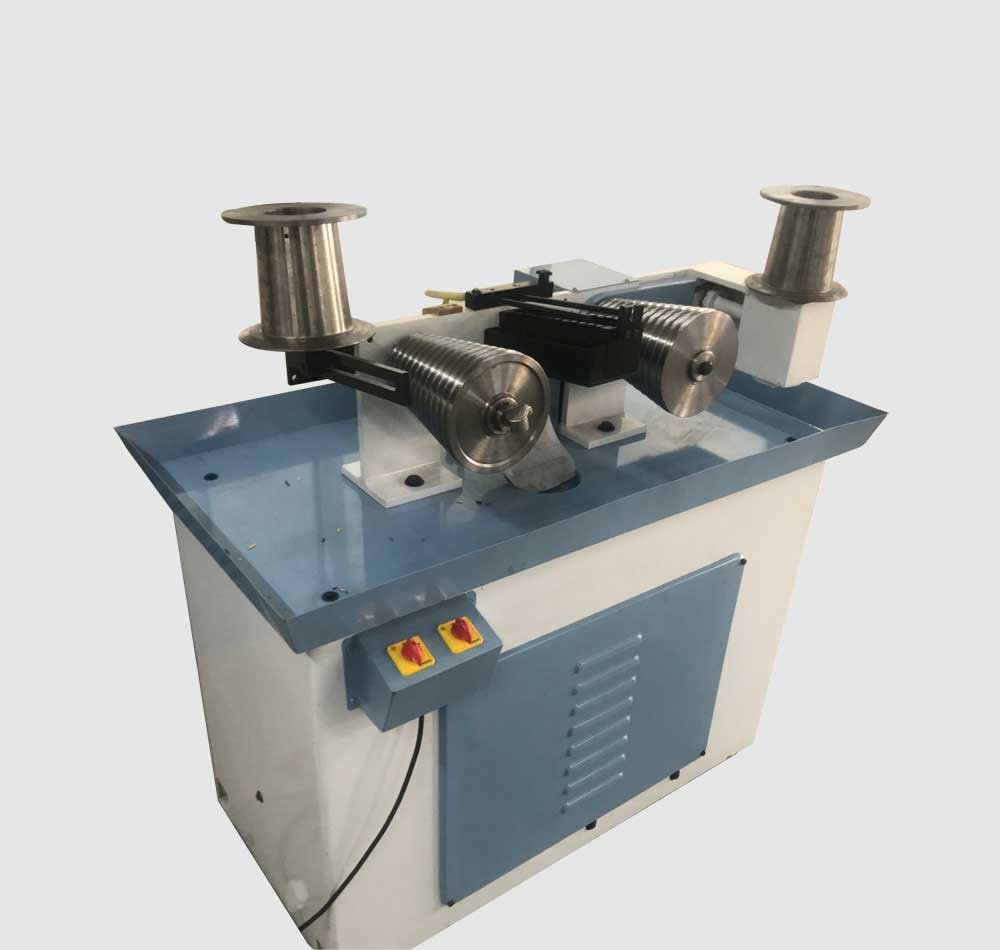

CE Automatic High Carbon Wire Drawing Machine For Nail Screw Making 0
