Spool, Removable Spool

1 SET
MOQ
to be negotiated
Price
Spool, Removable Spool
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Spool, Removable Spool
Brand: Dura
Application: Discharging
Marketing Type: Hot Product
Warranty: 1 Year
Showroom Location: Vietnam, Indonesia
Machinery Test Report: Provided
High Light:

Removable Spool discharging machine 600m min

,

Spool discharging machine 600m min

,

Spool discharging equipment 600m min

Basic Infomation
Place of Origin: Jiangsu, China
Brand Name: DURA
Certification: CE
Payment & Shipping Terms
Packaging Details: Nude Package
Delivery Time: 1 Set/30 Days; >1 To Be Negotiated
Payment Terms: L/C, D/P, T/T
Supply Ability: 100 Sets Per Month
Product Description

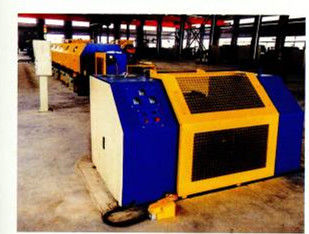

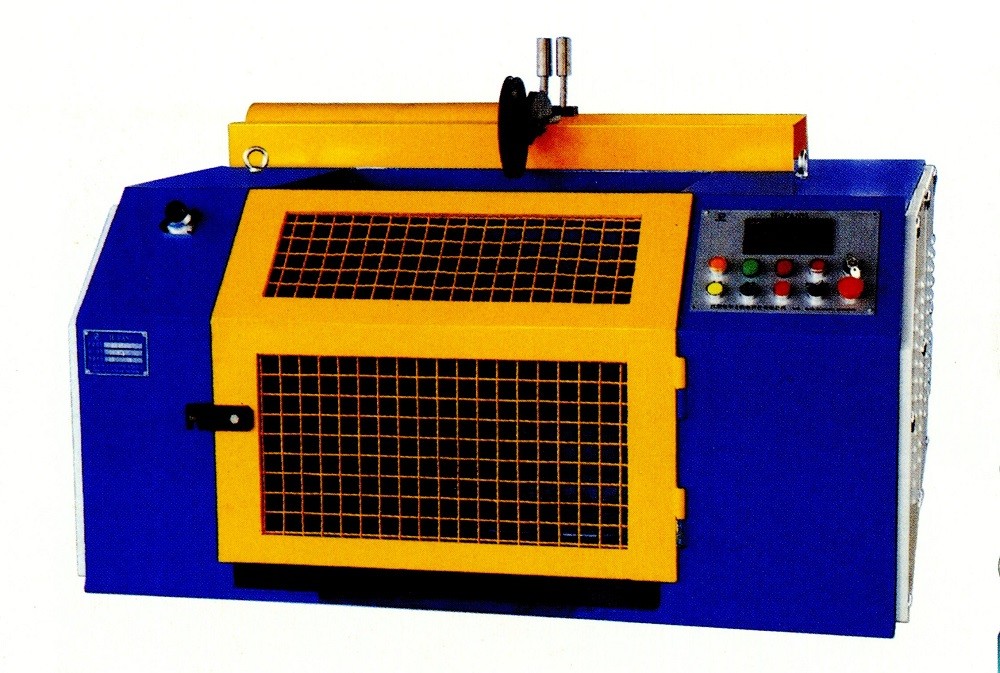

Spool, Removable Spool

Spool discharging machine developed, designed and manufactures by us is applicable for LZ straight line, LT wet, LW slip drawing machines. Features: common V band or narrow V band transmission, moment motor or variable-frequency motor, polished rod or silk rod array, manual or electric lockup, spool ascending via rotation of conical sharpening or automatically via electrics.

Note: Speed and tightening facility are available upon customers' requirements.



Model Specification
Take-diameter 1-5mm
Closing speed 0-600m/min
Cable way Wire rod/screw cable
Wire spacing 0.01-40mm
Cable thrust 70kg
Employment with the word wheel(coil)size A630 B800 C1150
Max weight collection line A500kg B800kg C1000kg



Removable Spool

Removable spool designed and manufactured by us is the optional parts of spool discharging machine. Features: good dynamic balance, simple structure, reliable disassembly. It is mainly used for winding end-product and commercial steel wire. The inner capstan is formed by three or six movabl pieces with groove for packing belt on each piece. The inner capstan is shrinkable, which is different with traditional separte spools. It solves the problem of discharging difficulties in the winding of steel wore. Dimension of spools can be identified according to customers' requirements.

Spool, Removable Spool 0
