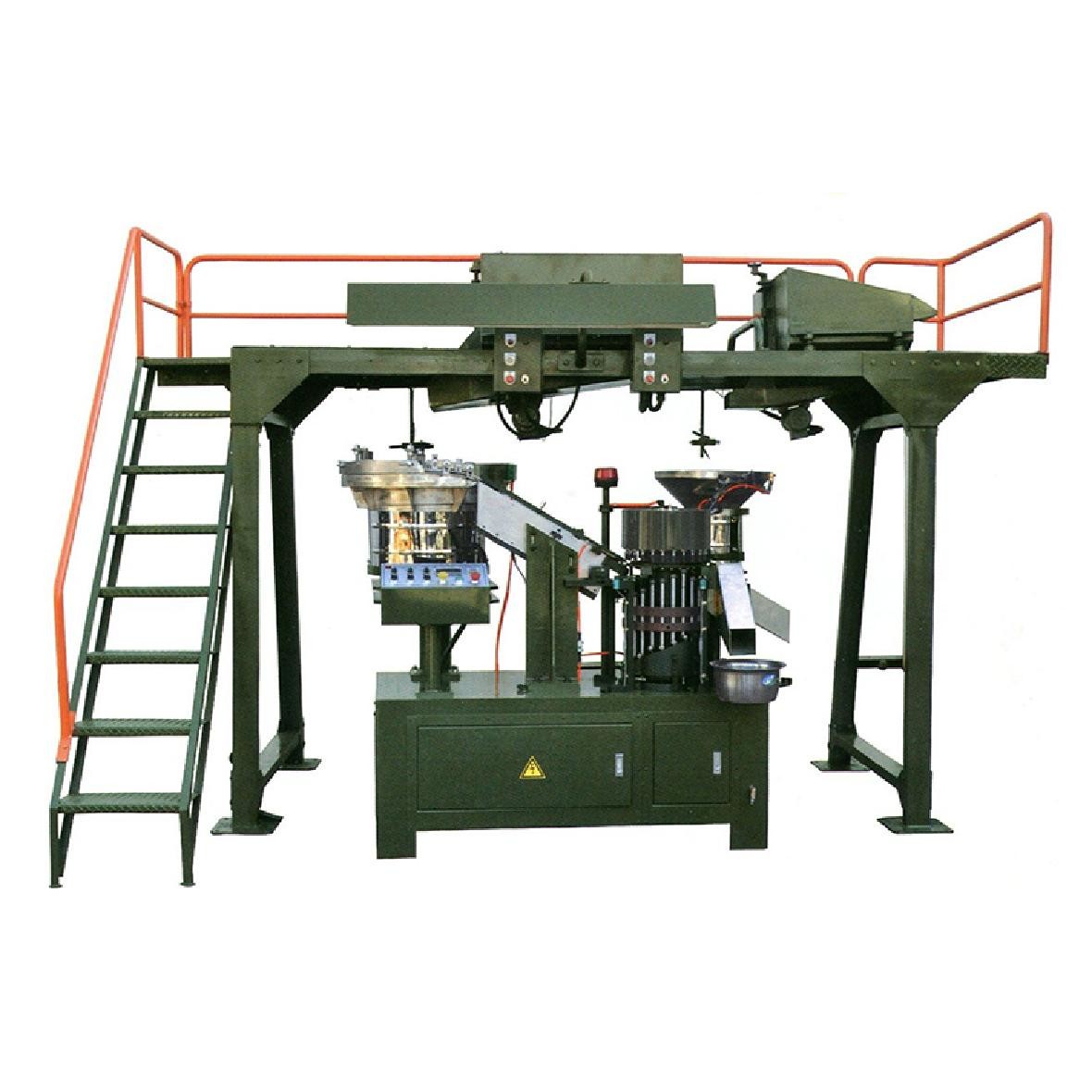

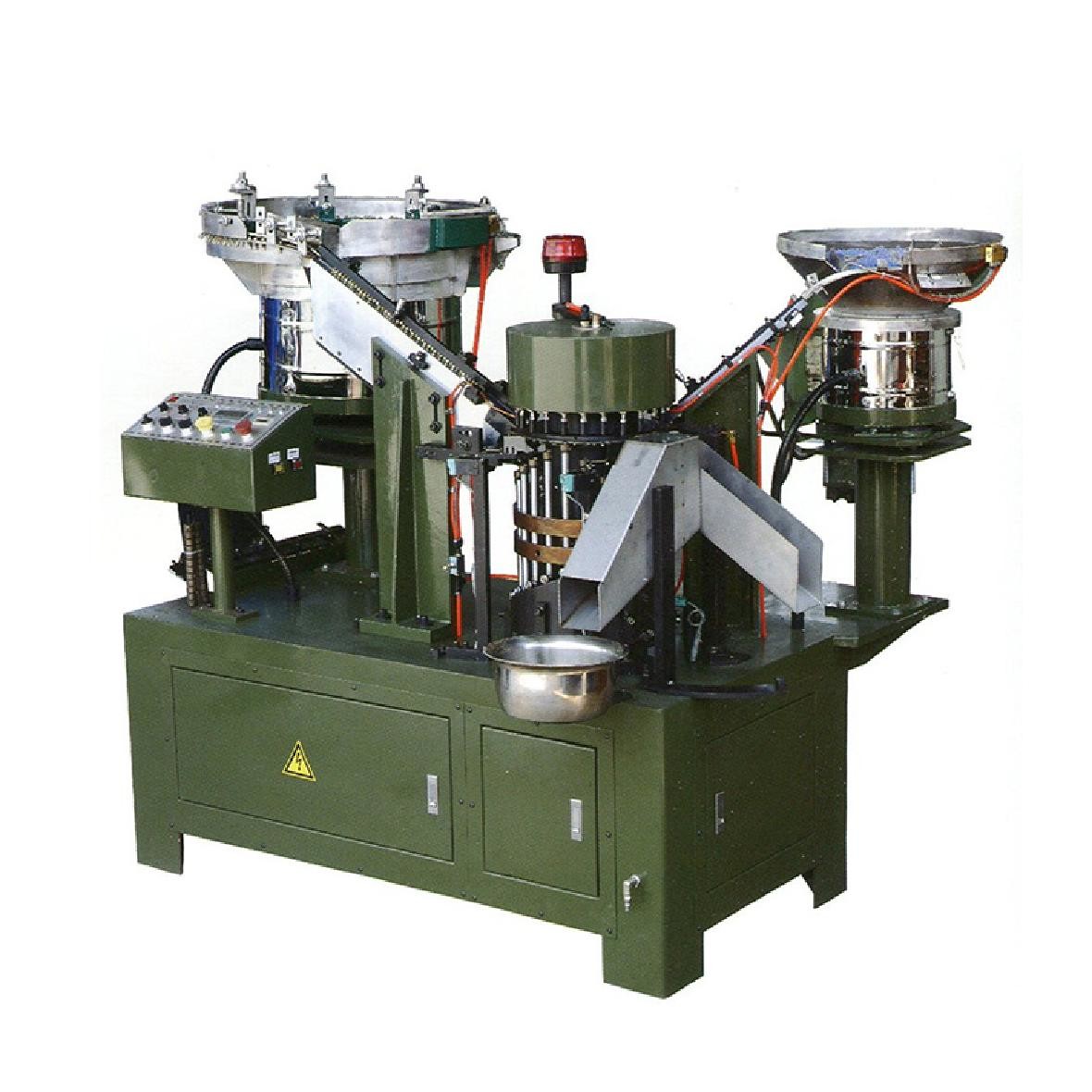

Screw & Washer Assembly Machine
Introduction
This machine is for for assembling screw and rubber washer/rubber bonded steel washer.
Model | Unit | WS-S |
Scew Type | #8-#14 | |
Screw Length | mm | 19-130 |
Washer Size | PVC10, PVC11, D12, D14, D16, D19 | |
Control | DC24V PLC programable controller & inverter | |
Motor | HP | 3 1/4 |
Screw Vibrator | mm | Ø750 |
Washer Vibrator | mm | Ø600 |
Capacity | pcs/min | 80-600 |
Weight | kg | 1140 |
Dimension of main machine | mm | 1860*1490*1580 |
Capacity of feeding system frame | kg | screw feeder: 250-300kg washer feeder: 100kg |
