Steel Wire Dead Block Coiler for Continuous Coiling

1 SET
MOQ
to be negotiated
Price
Steel Wire Dead Block Coiler for Continuous Coiling
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Steel Wire Dead Block Coiler For Continuous Coiling
Core Components: PLC
Application: Wire Nail Manufacturing
Marketing Type: Hot Product 2019
Warranty: 1 Year
Showroom Location: Vietnam, Indonesia
Machinery Test Report: Provided
Highlight:

Steel Wire dead block coiler machine

,

dead block coiler machine for Continuous Coiling

,

Continuous Coiling Machine
Basic Infomation
Place of Origin: Jiangsu, China
Brand Name: DURA
Certification: CE
Model Number: DBCC300-600
Payment & Shipping Terms
Packaging Details: Nude Package
Delivery Time: 1 Set/30 Days; ＞1 To Be Negotiated
Payment Terms: L/C, D/P, T/T
Supply Ability: 100 Sets Per Month
Product Description

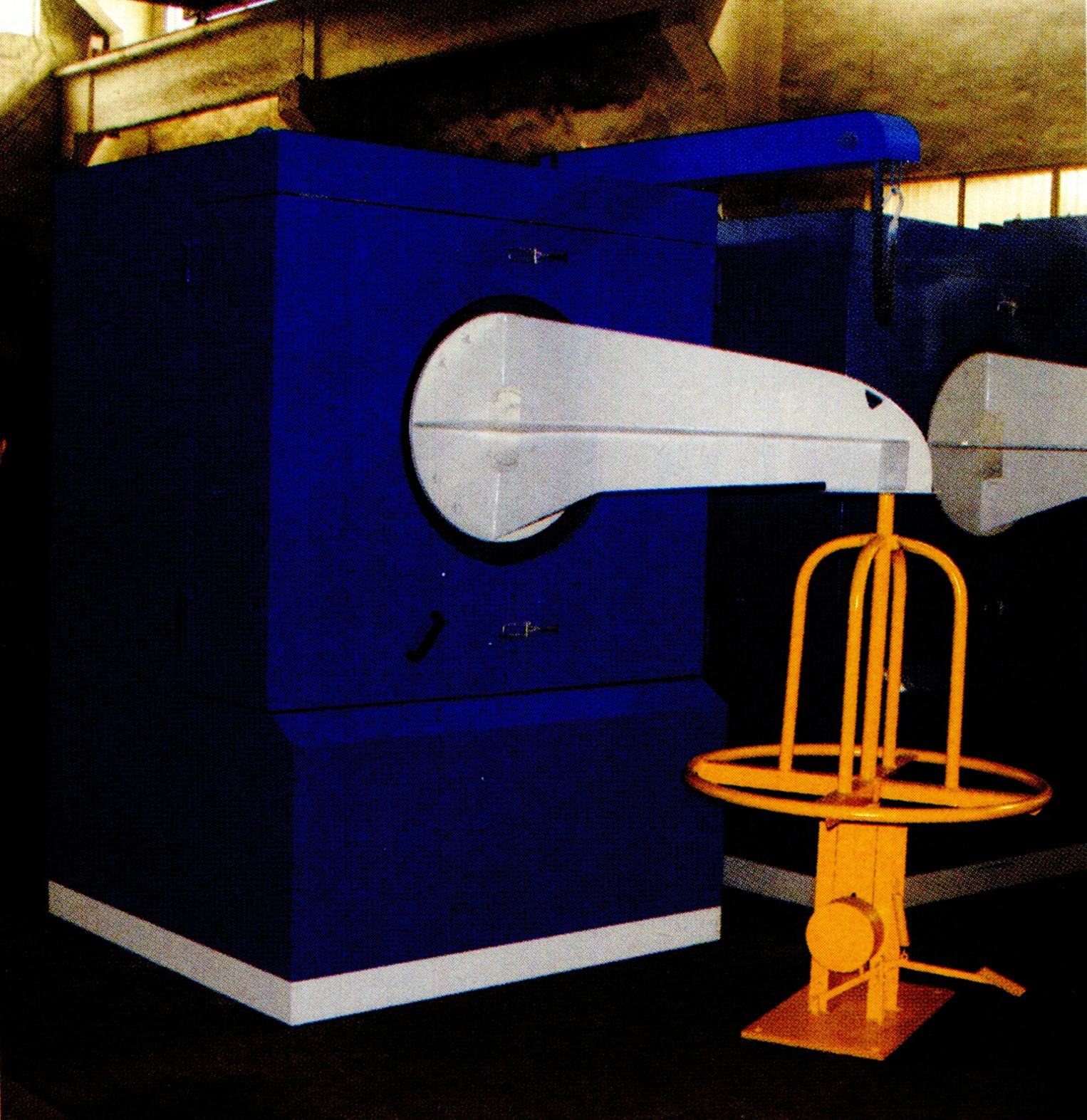

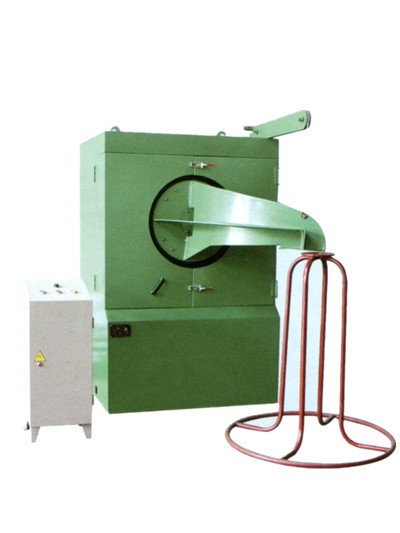

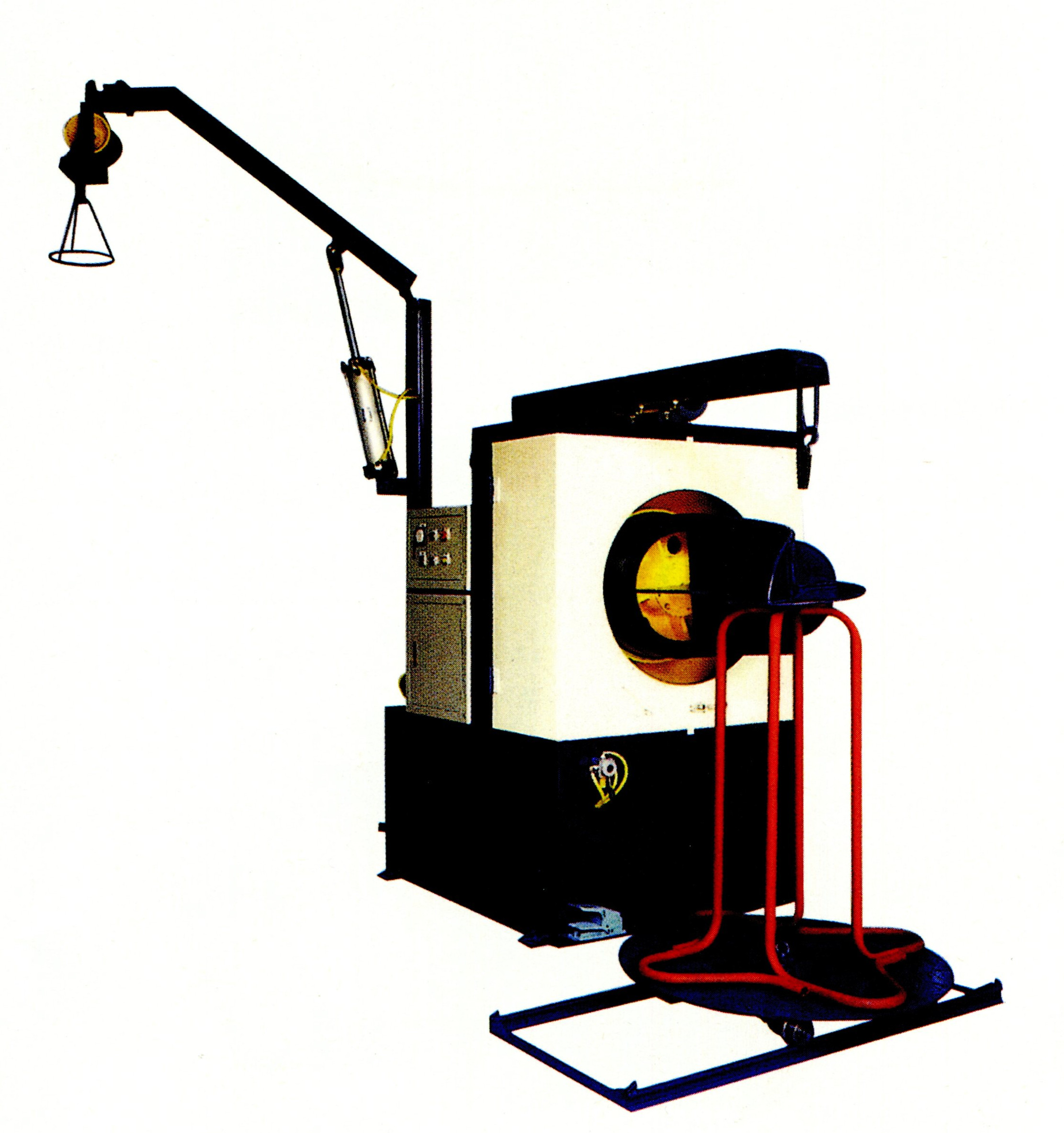

Steel Wire Dead Block Coiler for Continuous Coiling

Features

The dead block coiler is developed on the basis of international advanced technology for discharging high intensity wires after continuous drawing. It can realize discharging without shutting down the drawing machine to improve the efficiency of continuous drawing and reduce consumption of wires. Compared with Chinese common dead block coiler, it has an additional calibration module that the straightness of steel wire is improved. Its capstan applies water cooling and air cooling. Water cooling for calibration module can improve the quality of steel wire.



Steel Wire Dead Block Coiler for Continuous Coiling 0

Model Unit DBCC300-600
Diameter of discharging capstan mm 300-600
Diameter of discharging(charging) mm 1.4-3.5
Speed of discharging(charging) m/min. Custom-made
Intensity of discharging(charging) Mpa 1900-2600
Motor power Kw 11-45
Dimensions(L*W*H) mm 1500×1550×2350
Weight kg 2500
