Blind Rivet Machine for Assembling Blind Rivet, Blind Rivet Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Blind Rivet Machine For Assembling Blind Rivet, Blind Rivet Machine
Application: Rivet Assembling
Applicable Industries: Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Retail, Construction Works
After-sales Service: Online Support, Video Technical Support, Engineers Available To Service Machinery Overseas
Warranty: 1 Year
Local Service Location: None
High Light:

Blind Rivet assembly machine

,

screw washer assembly machine 2.2kw

,

screw assembly machinery

Basic Infomation
Place of Origin: Jiangsu, China
Brand Name: DURA

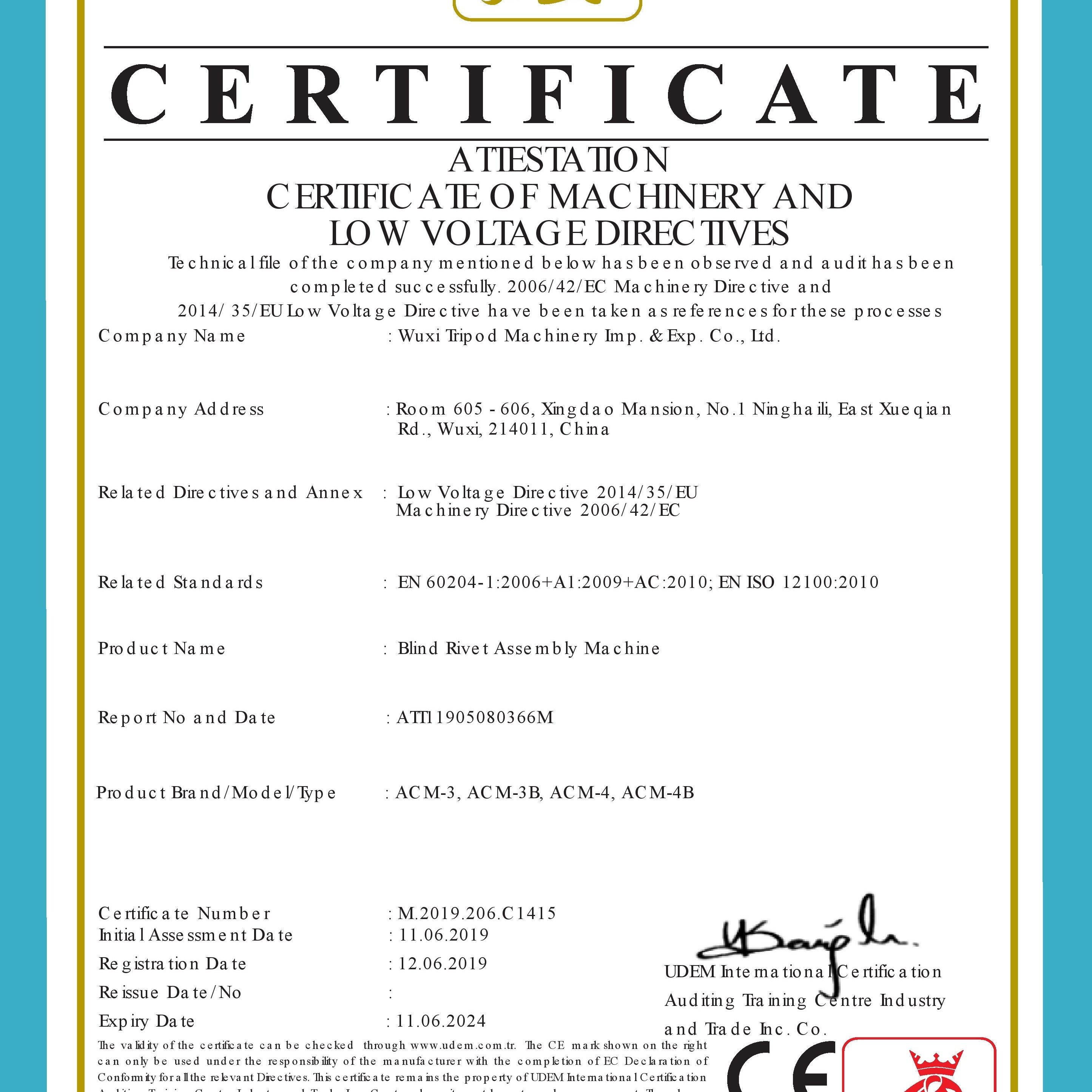

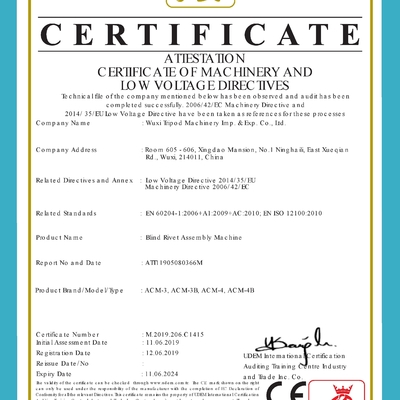

Certification: CE
Model Number: ACM-3 & ACM-4
Payment & Shipping Terms
Packaging Details: Nude Package, Steel/Plywood Pallet
Delivery Time: 1 Set/45 Days; >1 To Be Negotiated
Payment Terms: L/C, D/P, T/T
Supply Ability: 100 Sets Per Month
Product Description

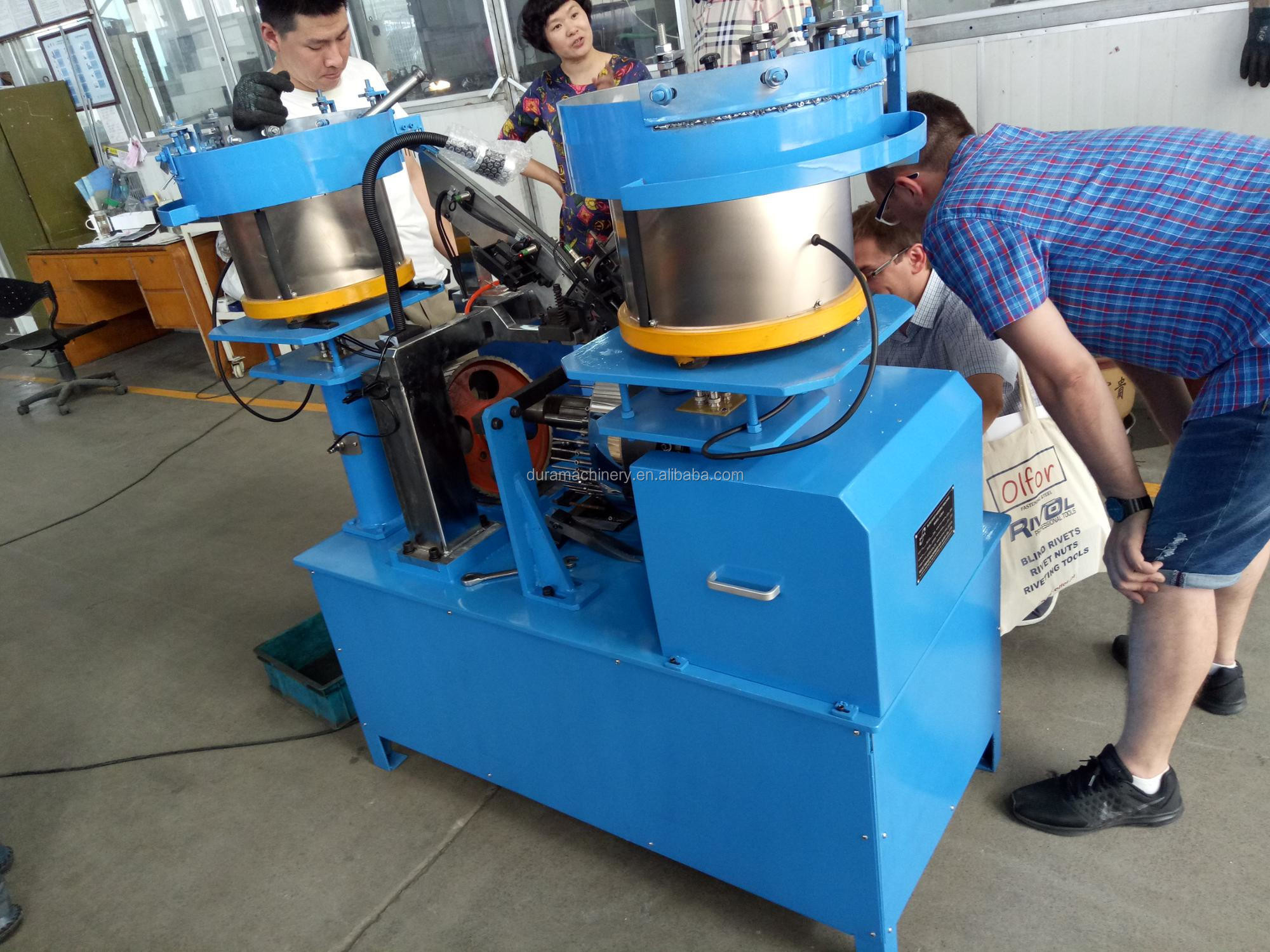

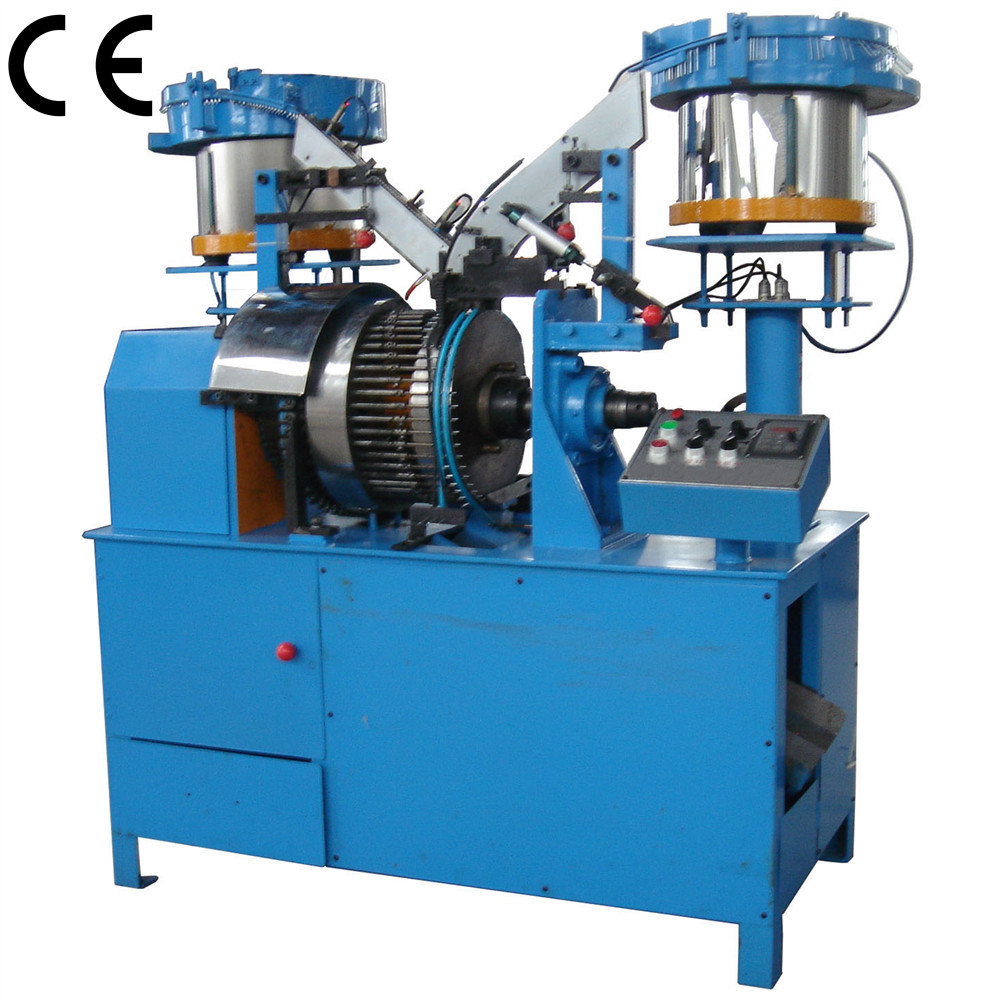

Blind Rivet Machine for Assembling Blind Rivet, Blind Rivet Machine

Features



1. It is blind rivet machine of blind rivet production line, composed of such automatic mechanisms as feeding, assembling, stopping when defective rivets and nails/mandrel, rivet vacancy or nail/mandrel vacancy are detected, a mal-functioning or a breakdown happened to the machine.



2. To protect the motor from overload damage, the torque protection device is equipped, when the twisting force exceeds an applicable limit, the clutch automatically skid, and 5 seconds later the machine stops.



3. The operating speed is adjustable by using variable frequency inverter so as to suit the production efficiency for different length of assembled blind rivets.



Model Unit ACM-3 ACM-4
Applications   Al./AlMg Blind Rivets Steel/Stainless Steel Blind Rivets

Blind rivet size range

(Dia.x Length)

mm (Ø2.7 - Ø 5) x (4 -30 ) (Ø2.7 - Ø 5) x (4 -30 )
Capacity pcs/min. 500-600 300-500
Motor power kw 0.75 2.2
Power Applicable   220V, 50Hz, 1-phase
Net weight(approx.) kg 500 800
Overall dimensions mm 1450 x 600 x 1800 1550 × 800 ×1900





Technical Specifications



Note:

1. Different diameter of blind rivet requires change of assembling mould/die/tool/matrix;

2. The specifications are subject to change without further notice.
