Nail Cutter/Tool/Die/Mold Grinder, Nail Making Accessory

1 SET
MOQ
to be negotiated
Price
Nail Cutter/Tool/Die/Mold Grinder, Nail Making Accessory
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Nail Cutter/Tool/Die/Mold Grinder, Nail Making Accessory
Warranty: 1 Year
Power (KW): 0.75
Weight (KG): 300
Application: Nail Prodcution
Key Selling Points: Long Service Life
After Warranty Service: Video Technical Support, Online Support, Spare Parts
Applicable Industries: Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction Works
High Light:

0.75kw nail cutter making machine

,

0.75kw nail cutting machinery

,

0.75kw nail cutter manufacturing machine

Basic Infomation
Place of Origin: Jiangsu, China
Brand Name: DURA
Certification: CE
Model Number: M-200
Payment & Shipping Terms
Packaging Details: Steel Pallet or Plywood Case
Delivery Time: 1-5 Sets/20 Days; >5 To Be Negotiated
Payment Terms: L/C, D/P, T/T
Supply Ability: 500 Sets Per Month
Product Description

Nail Cutter/Tool/Die/Mold Grinder, Nail Making Accessory



Features

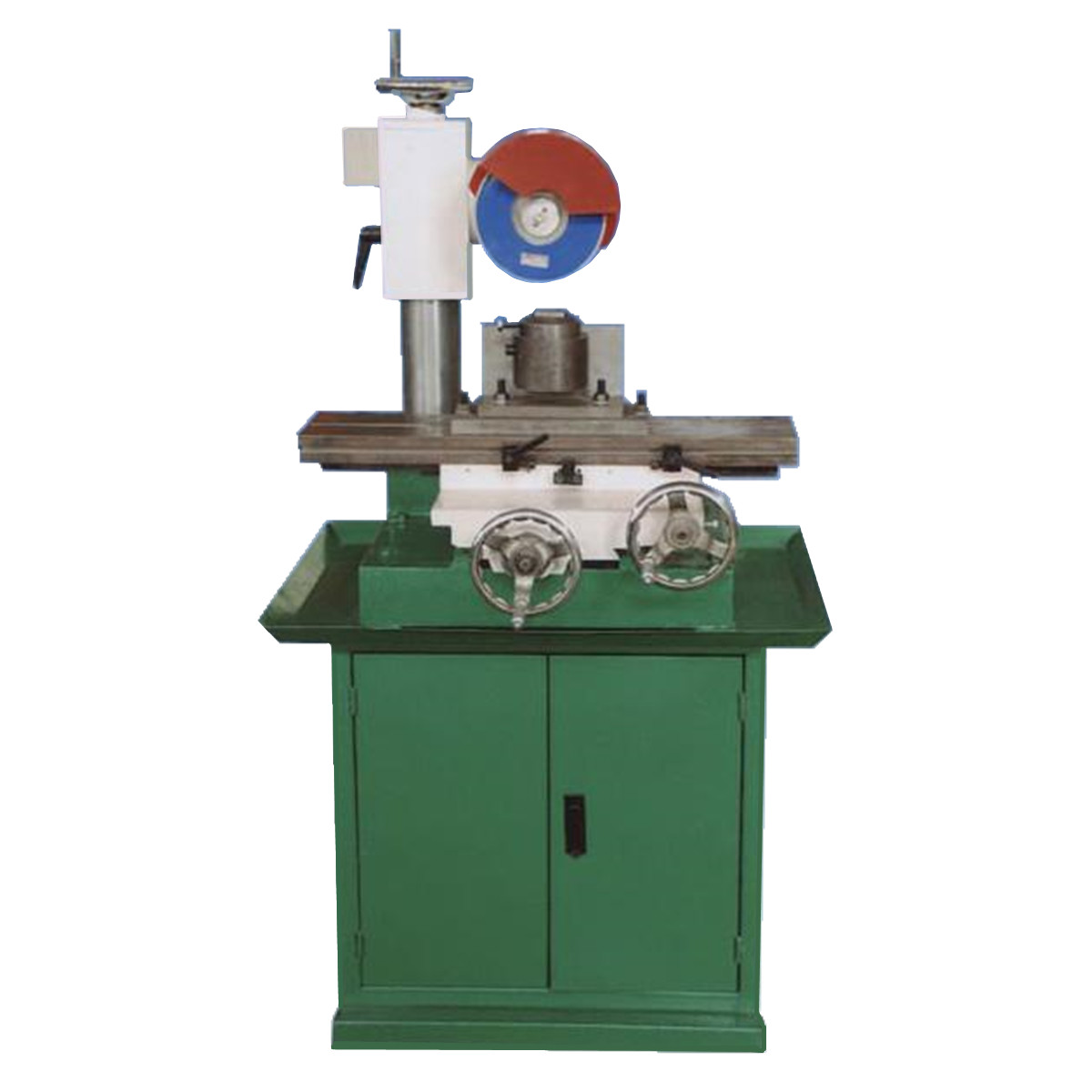

This machine is a multifunctional nail cutter die grinder, which is mainly used to repair nail cutter dies with tungsten carbide tips (hard alloy) and grind the cutting edge of used and new cutters. With other various accessories to form a combination kit, it can also grind various cutting tools, such as different milling cutters, reamers, screw taps, gear cutters and so on. It is an ideal machine for the repair work shop of nail production factories.



Technical Specifications



Type of grinding wheels

Diamond for hard alloy cutter dies or

Emery for HSS cutter dies

Grinding wheel up and down movement 250(mm)
Max. grinding wheel dia. 200(mm)
Worktable size 680(mm) x 1600(mm)
Worktable transverse movement 350(mm)
Worktable lengthways distance 250(mm)
Voltage&frequency 380V 50Hz
Main Motor 750 W,2800rpm
Overall dimensions 900 x 900 x 1300 (mm)
Net weight 300(kg)
