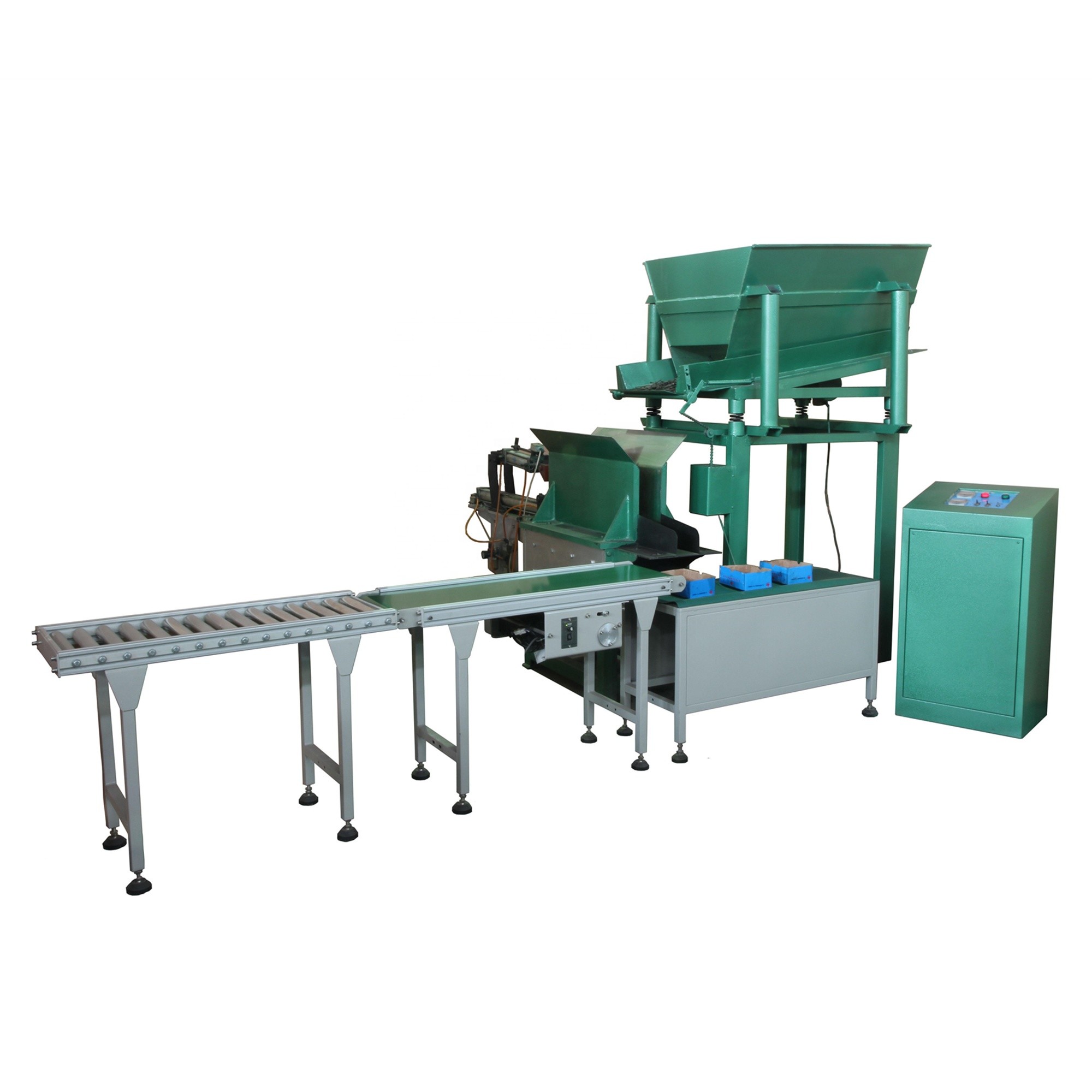

Nail Packing Collator, Nail Packing Machine
Applications: Wire nail packing collator, a compact packing device which is mainly used to pack the wire nails to boxes or small cartons/cases by way of electromagnetic parallel alignment. It can help to fill the cartons with paralleling nails fitly side by side. In the past, the way of packing was filling cartons/cases with nail dispersedly, by contrast with it; this new-type unit can make the encasement regular.
Product Paramenters
This collator is an auxiliary packing machine for the packing of the nails. In the past, manual packing & sorting were a normal way adopted by most nail makers, but it has many disadvantages: slower speed, more labor and the workers were often stabbed by the disordered nails. Now the collator provides parallel alignment of wire nails and regular filling, which reduces the laboring intensity and largely increases the productivity. Accordingly, it reduces the volume of package too, so does the cost of package. At present, this machine is deeply popular with the small or medium-sized nail producers.
| Model & Descriptions | NP-F1 | NP-F2 |
| Range of the length of packed nails(mm) | 60-120 | 60-120 |
| Capacity(boxes/min) | 3-4 | 3-4 |
| Scope of the weight of a box(kg) | 1-6 | 1-6 |
| Pressure of the compressed air(kg/cm2) | 4 | 4 |
| Total power(kw) | 1.5 | 1.5 |
| Loading capacity of vibrating hopper(kg) | 300 | 500-800 |
| Adjustable speed conveyor and a digital scale | No | To carry 10 boxes on the conveyor stand |
| Stroke of press-down cylinder(mm) | 200 | 200 |
| Internal diameter of push-out cylinder(mm) | φ63 | φ63 |
| Stroke of the cylinder(mm) | 710 | 710 |
| Overall dimensions(mm) | 2000 x 600 x 1400 | 2000 x 600 x 1400 |
| Total weight(kgs) | 1000 | 1500 |
