Pulley Type Wire Drawing Machine for Nail Making

to be negotiated
Pulley Type Wire Drawing Machine for Nail Making
Features Gallery Product Description Request A Quote
Name: Pulley Type Wire Drawing Machines
Outlet Diameter: 2.5~6.5mm
Power: 11~18KW
Weight: 1500kgs
Type: Dry Type
Inlet Diameter: 0.75~2.5mm
Voltage: 380/415/440/220
Dimension(L*W*H): 1520x810x1700mm
Pulley: OTO
Usage: Wire Drawing/Wire Processing
High Light:

18KW pulley type wire drawing machine


18KW copper wire drawing machine


18KW wire drawing machine copper

Basic Infomation
Place of Origin: Jiangsu, China
Brand Name: DURA
Certification: CE
Model Number: LW-560, LW-450, LW-350
Payment & Shipping Terms
Packaging Details: Nude Package or Steel Pallet Under Request
Delivery Time: 1-10 Sets/25 Days; >10 To Be Negotiated
Payment Terms: L/C, D/P, T/T
Supply Ability: 100 Sets Per Month
Product Description

Pulley Type Wire Drawing Machine for Nail Making


1. Usage This Kind of machine is an ideal equipment applied to draw high-, medium- and low-carbon steel wire, as well as copper, alumium and alloy wire, the machine is applied to draw wires in nail, screw and rivet making factories etc.
2. Structure The equipment consists of main reduction box, die casing, wheel frame, wire brace and electrical control system. The spinning drawing blocks are driven by JZT or Y series motor, with gear coupling runs changeful gears to reduce speed. The drawing blocks are vertically fixed in sealed box body, the gear pair are lubricated with oil. In order to lower residual heat on the surface of the block, the cooling device is installed in inter-wall of the block.
3. The machine runs with carwl or linkage. The safety halt gear is installed by the position of operation block.
4. Technical specifications:
Item   Continuous Multi-block Type
Model Unit LW- n/ 560 LW-n/450 LW-n/350
Max. drawing pass (n)   n: 1 - 10 n: 1 – 8 n: 1- 8
Tensile strength of wire rod Kg/mm² >110 128 >140
Max. dia. of wire rod mm 6.5 3.4 2.5
Min. dia. of finished wire mm 2.5 1 0.75
Typical configuration -- LW1- 6/560 LW1-7/450 LW1-6/350
Max. average reduction percent % 30 20 21
Designed total reduction percent % 78-88.5 77.9 78
Max. speed of block m/min. 245 (block 6) 346.9 (block. 7) 200 (block 6)
Total power kw 18.5-30 7.5-11 7.5-11
Weight kg 2000 1500 1000
Overall dimensions(L×W×H) mm 1700x1150x1750 1520x810x1700 1400x800x1500


Other machines and accessories for wire drawing production are available.

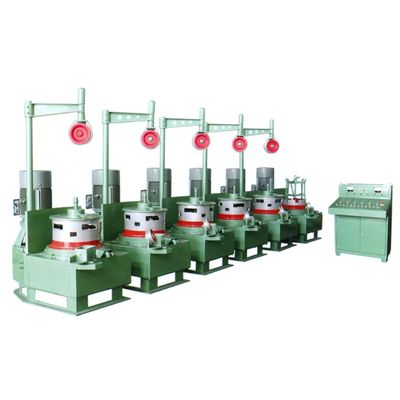

Pulley Type Wire Drawing Machine for Nail Making 0Pulley Type Wire Drawing Machine for Nail Making 1Pulley Type Wire Drawing Machine for Nail Making 2
