Barbed Wire Making Machines , Making Traditional Twisted Barbs/Double Twisted Barbs

1 SET
MOQ
to be negotiated
Price
Barbed Wire Making Machines , Making Traditional Twisted Barbs/Double Twisted Barbs
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Barbed Wire Making Machines, Making Traditional Twisted Barbs/Double Twisted Barbs
Core Components: Motor
Production Capacity: 120KGS/HR
Weight (KG): 900
After-sales Service: Online Support, Video Technical Support, Engineers Available To Service Machinery Overseas
Type: Traditional Type/Single-Line Type/Double Twisted Type
Machinery Test Report: Provided
Warranty Of Core Components: One Year
Wire Diameter (mm): 1.6 - 3 Mm
Power (KW): 2.2
Applicable Industries: Building Material Shops, Manufacturing Plant, Farms, Retail
Key Selling Points: Easy To Operate
High Light:

Double Twisted wire making machine 2.2kw

,

concertina razor wire making machine

,

fully automatic barbed wire machine

Basic Infomation
Place of Origin: Jiangsu, China
Brand Name: DURA
Certification: CE
Model Number: BW-A/B
Payment & Shipping Terms
Packaging Details: Plywood Case
Delivery Time: 1 Set/15 Days; >1 To Be Negotiated
Payment Terms: L/C, D/P, T/T
Supply Ability: 100 Sets Per Month
Product Description

Barbed Wire Making Machines, Making Traditional Twisted Barbs/Double Twisted Barbs

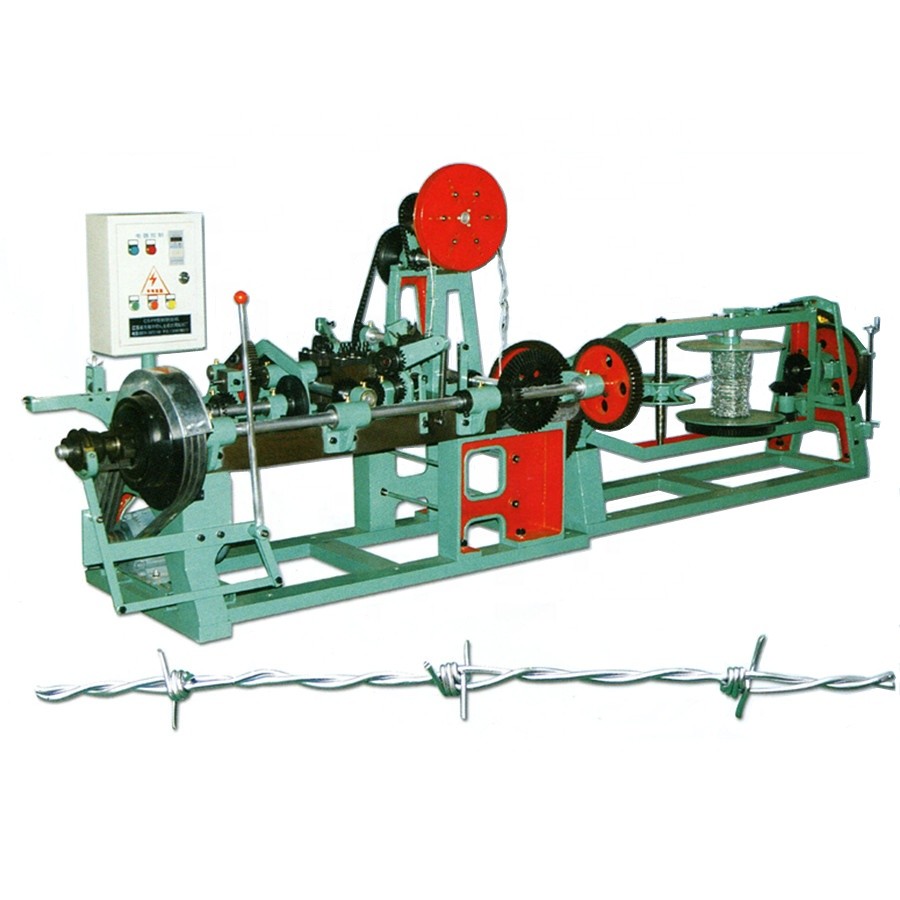

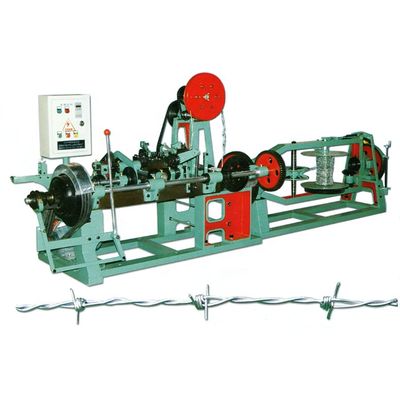

BW-A Barbed Wire Making Machine is designed to produce hot dip or electro galvanized, barbed steel wires with structure in 2-wire stranded line and Traditional Twisted Barbs. The machine is of horizontal design, consisting of two parts, assembled together at the middle. It is safe and reliable in operation, capable of turning out high quality products with consistency.



Model Unit BW-A BW-B BW-C
Dia. Of line wire mm 2.2-3.0 1.6-2.8 2.2-3.0
Dia. Of barb’s wire mm 1.8-2.2 1.6-2.2 1.8-2.2
Barb’s spacing in. 3,4,5,6 4,5 4,5
Material(line wire & barb wire)   Low carbon, hot dip galvanized steel wire Low carbon, hot dip galvanized steel wire Low carbon, hot dip galvanized steel wire
Total weight kg 1200 1000 1000
Motor power kw 2.2 2.2 2.2
Main drive shaft speed r/min 402 355 355
Twist number pcs 3.5 7
Designed capacity kg/hr 70-80 40 40
Overall Dimensions mm 1950×950×1300
1760×550×760
3000×1000×1150 3100×1000×1150







Dia .of line wire



Dia .of line wire Dia .of line wire Dia .of line wire Dia .of line wire



2.2-3.0mm



2.2-3.0mm

2.2-3.0mm

2.2-3.0mm 2.2-3.0mm

Material

(Line wire & barb wire)



Material

(Line wire & barb wire)

Material

(Line wire & barb wire)

Material

(Line wire & barb wire)

Material

(Line wire & barb wire)



Low carbon , hot dip



Low carbon , hot dip

Low carbon , hot dip

Low carbon , hot dip Low carbon , hot dip



galvanized steel wire



galvanized steel wire galvanized steel wire galvanized steel wire galvanized steel wire



Dia .of barb’s wire



Dia .of barb’s wire Dia .of barb’s wire Dia .of barb’s wire Dia .of barb’s wire



1.8-2.2mm





1.8-2.2mm



1.8-2.2mm



1.8-2.2mm



1.8-2.2mm



Total weight



Total weight

Total weight Total weight Total weight
1000kg 1000kg 1000kg 1000kg



1000kg



Barbs’spacing



Barbs’spacing Barbs’spacing Barbs’spacing Barbs’spacing



3,4,5in



3,4,5in 3,4,5in 3,4,5in 3,4,5in

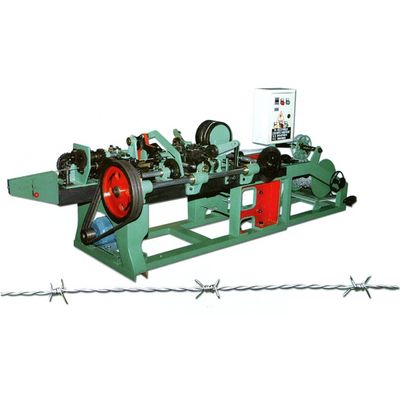

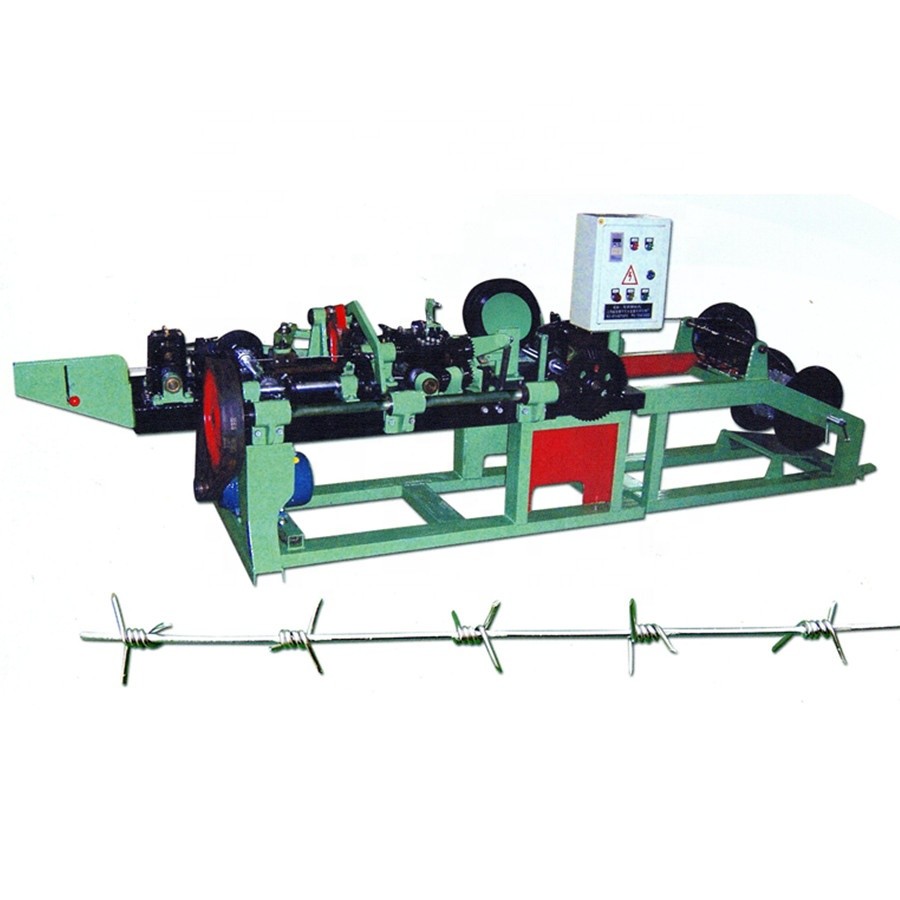

BW-B Barbed Wire Making Machine is designed to produce hot dip or electro galvanized, barbed steel wires with structure in a 2-wire stranded line and Double Twisted Barbs. The machine is of horizontal design, consisting of two parts, assembled together in tandem. It is safe and reliable in operation, capable of turning out high quality products with consistency.

Dia .of line wire 1.6-2.8mm

Material

(Line wire & barb wire)

Low carbon , hot dip

galvanized steel wire

Dia .of barb’s wire 1.6-2.2mm Total weight 800kg
Barbs’ spacing 4 , 5 in Power 2.2kw
