Fully Automatic High Speed Low Noise Common Wire Nail Making Machine, Z94 Series

1 SET
MOQ
$3,000.00- $10,000.00/Set
Price
Fully Automatic High Speed Low Noise Common Wire Nail Making Machine, Z94 Series
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Automatic High Speed Low Noise Common Wire Nail Making Machine, Z94 Series
Dia. Of Nail (Max.): 3.1mm
Dia. Of Nail (Min.): 1.4mm
Length Of Nail (Max.): 65mm
Length Of Nail (Min.): 20mm
Designed Capacity/speed: 550pcs/min
Motor Power: 4.5kw
Main Machine Weight(Approx.): 1300kg
Main Machine Overall Dimensions: 1850 X 1100 X 1100mm
Key Selling Points: High Productivity
Highlight:

automatic high speed wire nail making machines

,

Common Wire Nail Making Machine 4.5kw

,

wire nail making machine automatic
Basic Infomation
Place of Origin: Jiangsu, China
Brand Name: DURA
Certification: CE
Model Number: Z94-C Series
Payment & Shipping Terms
Packaging Details: Seaworthy Steel Pallets
Delivery Time: 1-5 sets 30 days; ＞5 sets to be negotiated
Payment Terms: L/C, D/P, T/T
Supply Ability: 100 Sets Per Month
Product Description

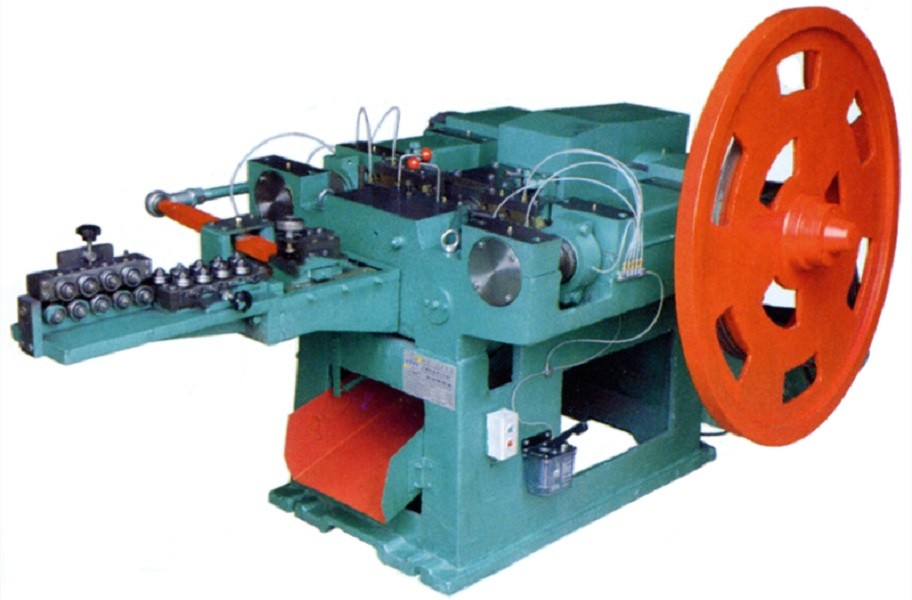

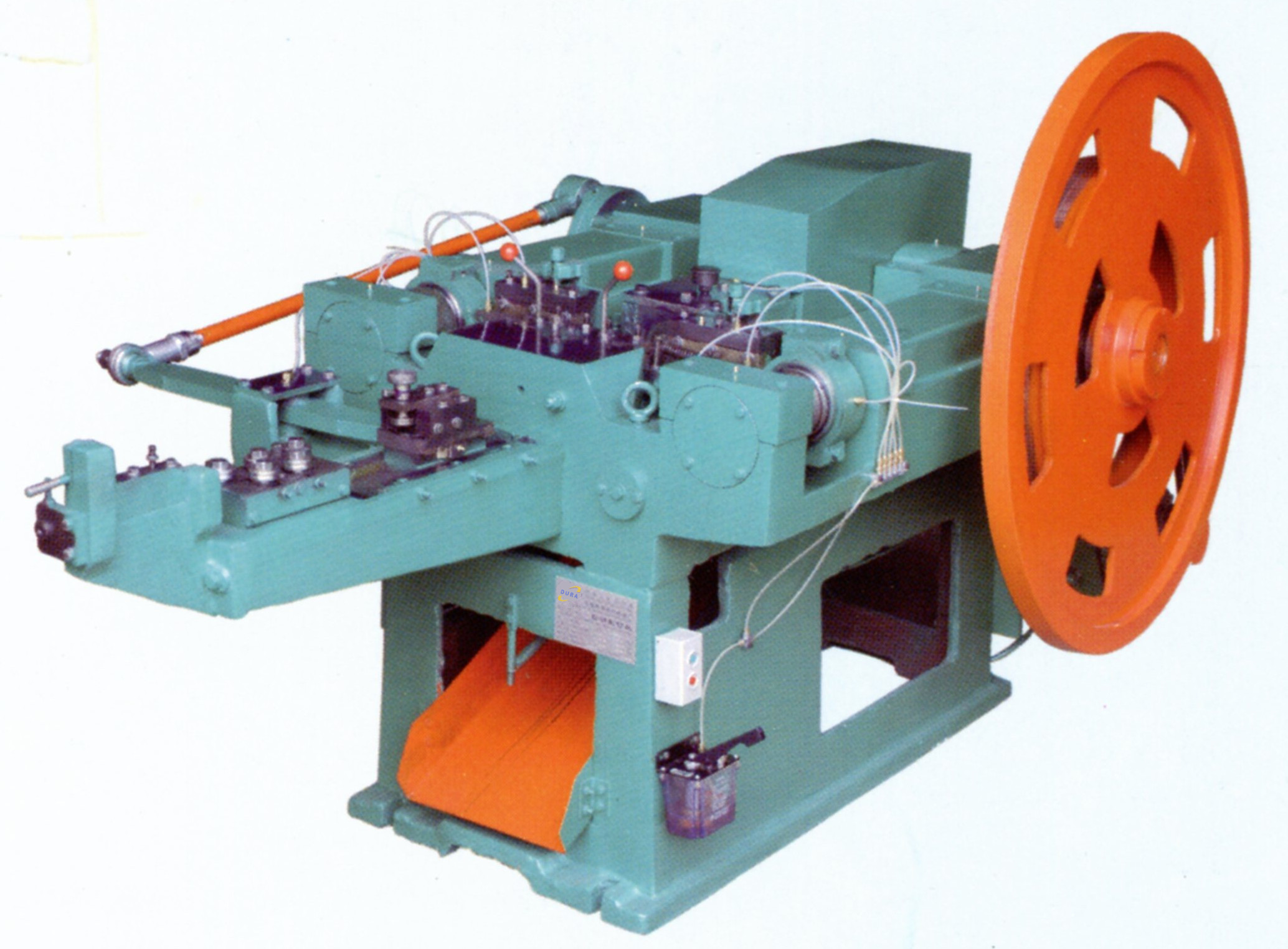

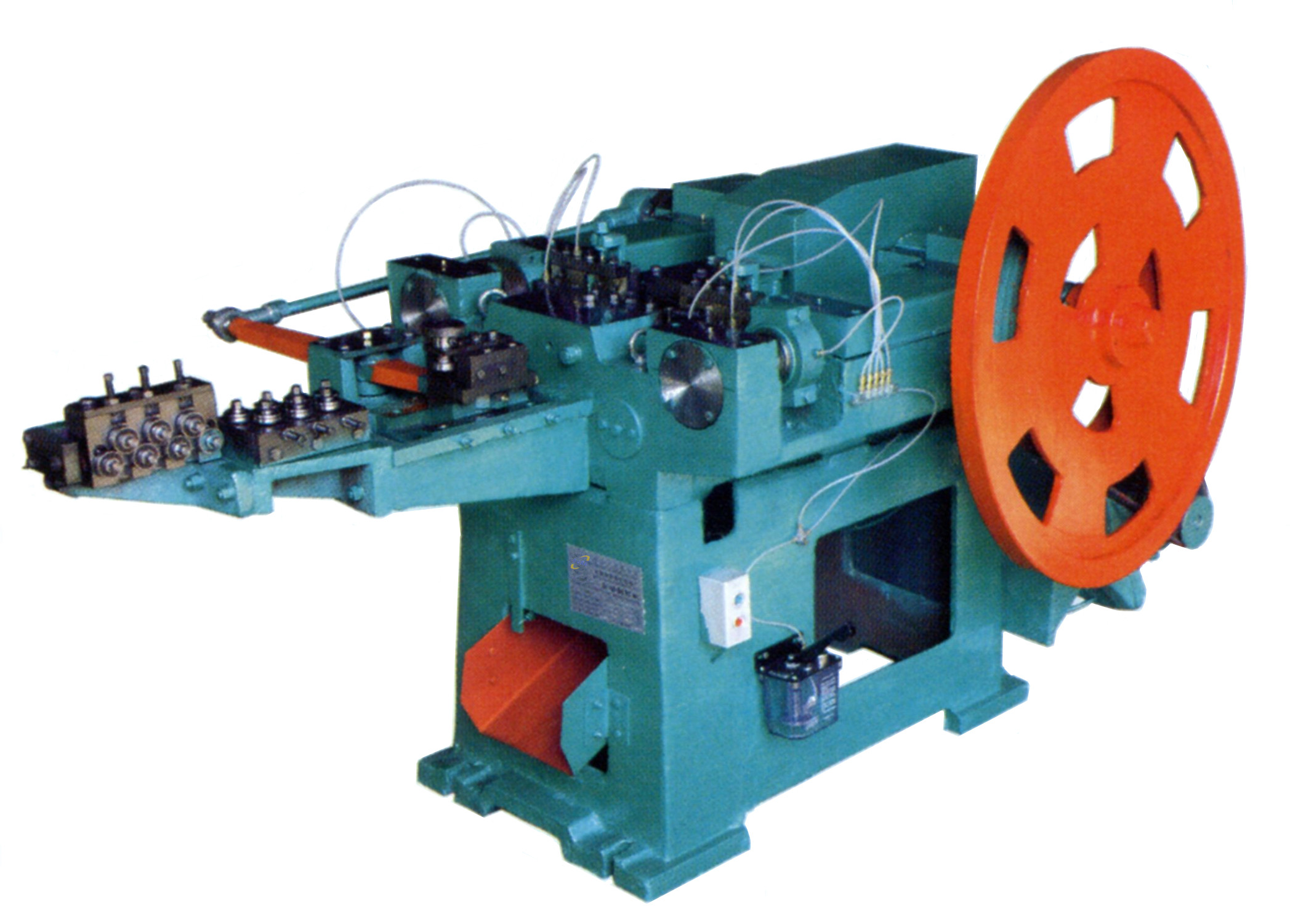

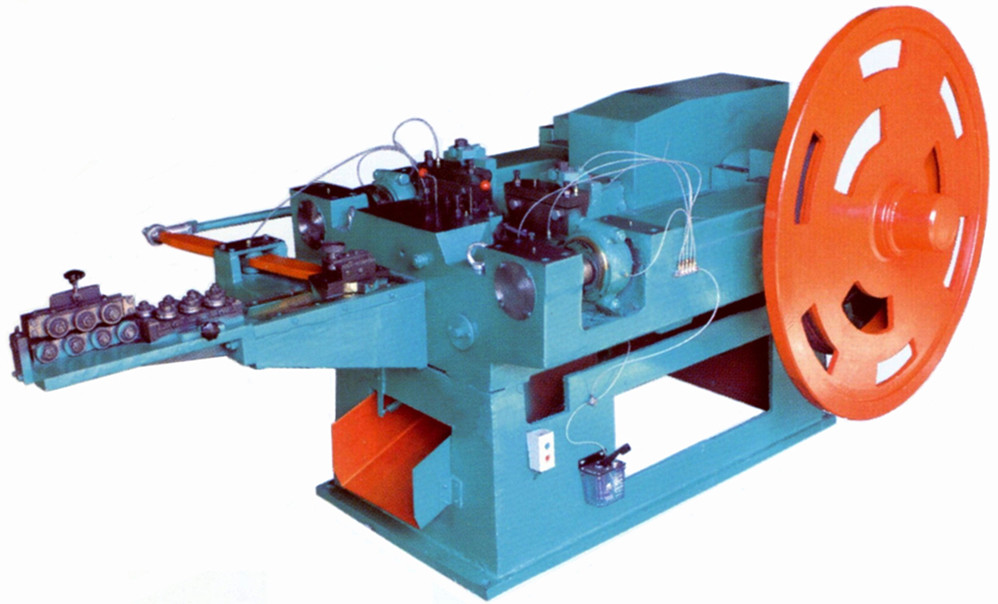

Fully Automatic High Speed Low Noise Common Wire Nail Making Machine, Z94 Series





Introduction



This machine is for making mandrels of the blind rivets. It adapts the design of common nail making machine and by years of developing and improving, it features easy operation, stable functioning and high quality outputing of steel mandrels.



Technical data Model Z94-1.6C Z94-2.8C Z94-3.4C
Dia. of nail (max.) mm 1.6 2.8 3.4
Dia. of nail (min.) mm 0.9 1.2 1.8
Length of nail (max.) mm 25 50 75
Length of nail (min.) mm 9 16 30
Designed capacity/speed pcs/min 460-550 320-350 300-320
Motor power kw 1.5 2.2 3
Weight (approx.) kg 1200 1450 1800
Overall dimensions mm 1500x1300x1200 1700x1300x1400 2000x1400x1400



Technical data Model Z94-4.5C Z94-5.5C Z94-6.5C
Dia. of nail (max.) mm 4.5 5.5 6.5
Dia. of nail (min.) mm 2.8 3.1 3.4
Length of nail (max.) mm 100 150 203-218
Length of nail (min.) mm 50 75 100
Designed capacity/speed pcs/min 250-280 180-220 160-220
Motor power kw 4 5.5 11
Weight (approx.) kg 2000 2500 5500
Overall dimensions mm 2200x1600x1650 2400x1700x1650 3200x1850x1800



Fully Automatic High Speed Low Noise Common Wire Nail Making Machine, Z94 Series 0Fully Automatic High Speed Low Noise Common Wire Nail Making Machine, Z94 Series 1Fully Automatic High Speed Low Noise Common Wire Nail Making Machine, Z94 Series 2
