Overview

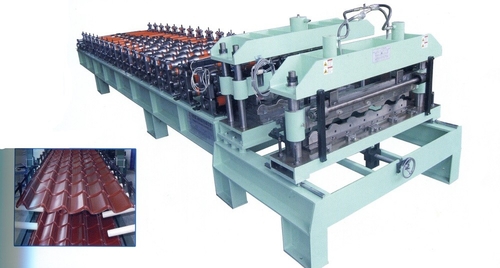

The machine adopts coiled metal steel strip as raw material, which is uncoiled, continuously rolled and cold-formed, and automatically cut to length to produce plates of specific shapes and specifications. The whole machine adopts PLC control and AC frequency conversion speed regulation technology to realize continuous automatic production. It is an ideal production equipment for steel structure and metal cold bending processing industries.
Equipment Structure
The main machine of the equipment consists of a passive decoiler, a roll forming main machine (including guided feeding, Hydraulic cutting and discharging table) hydraulic system, electronic control system and so on.
The processing process of the equipment roll parts is completed by CNC lathes and other processing machinery, which effectively guarantees the processing accuracy of the parts, and uses various process equipment and testing equipment to ensure the equipment assembly accuracy.
Production Process
Loading (put the steel coil into the inner supporting opener to support it) ----- roll forming (the steel belt is correctly guided into the forming machine through the guiding feeding mechanism) ----- hydraulic cutting---- discharge
| NO. | Items | Unit | Main Specification |
| 1 | Roll material | 45# | |
| 2 | Hard chrome coating on rolls | mm | ≥ 0.05 |
| 3 | Pressure type cutting integrated mechanism | Four-column single station hydraulic press | |
| 4 | Mold material | 40Cr(HB220-260) |
