Name: High Speed Steel Ball Making Machine Automatic
Brand: Wuxi Tripod Machinery Imp. & Exp. Co., Ltd.
SKU: ZS32 series
Price: 10,000.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Name: High Speed Steel Ball Making Machine

Brand: Dura

Condition: New

Warranty: 1 Year

Power: 5.5-30KW

Key Selling Points: High Speed & High Accuracy

Showroom Location: Online Support, Video Technical Support, Engineers Available To Service Machinery Overseas

Local Service Location: For Forming Steel Balls Of Different Sizes

Highlight:

Automatic Steel Ball Making Machine

Steel Ball Manufacturing Machine

High Speed Steel Ball Production Equipment

Basic Infomation

Place of Origin: Jiangsu, China

Brand Name: DURA

Certification: CE

Model Number: ZS32 series

Payment & Shipping Terms

Packaging Details: Plywood Case

Delivery Time: 1-5 Sets/35 Days; ＞5 To Be Negotiated

Payment Terms: L/C,T/T

Supply Ability: 100 Sets Per Year

Gallery

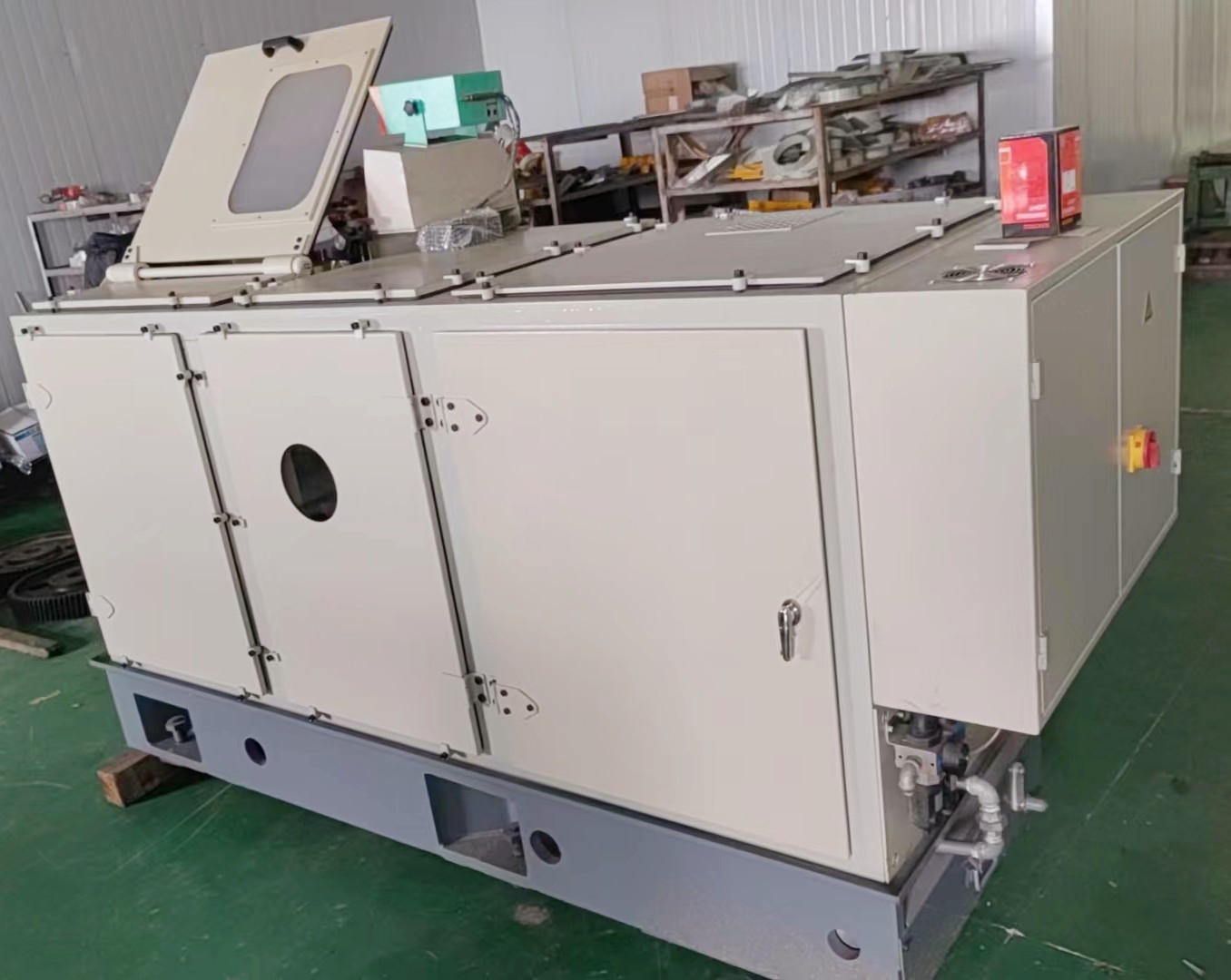

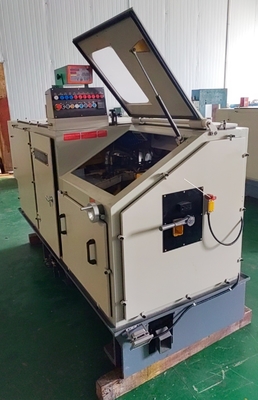

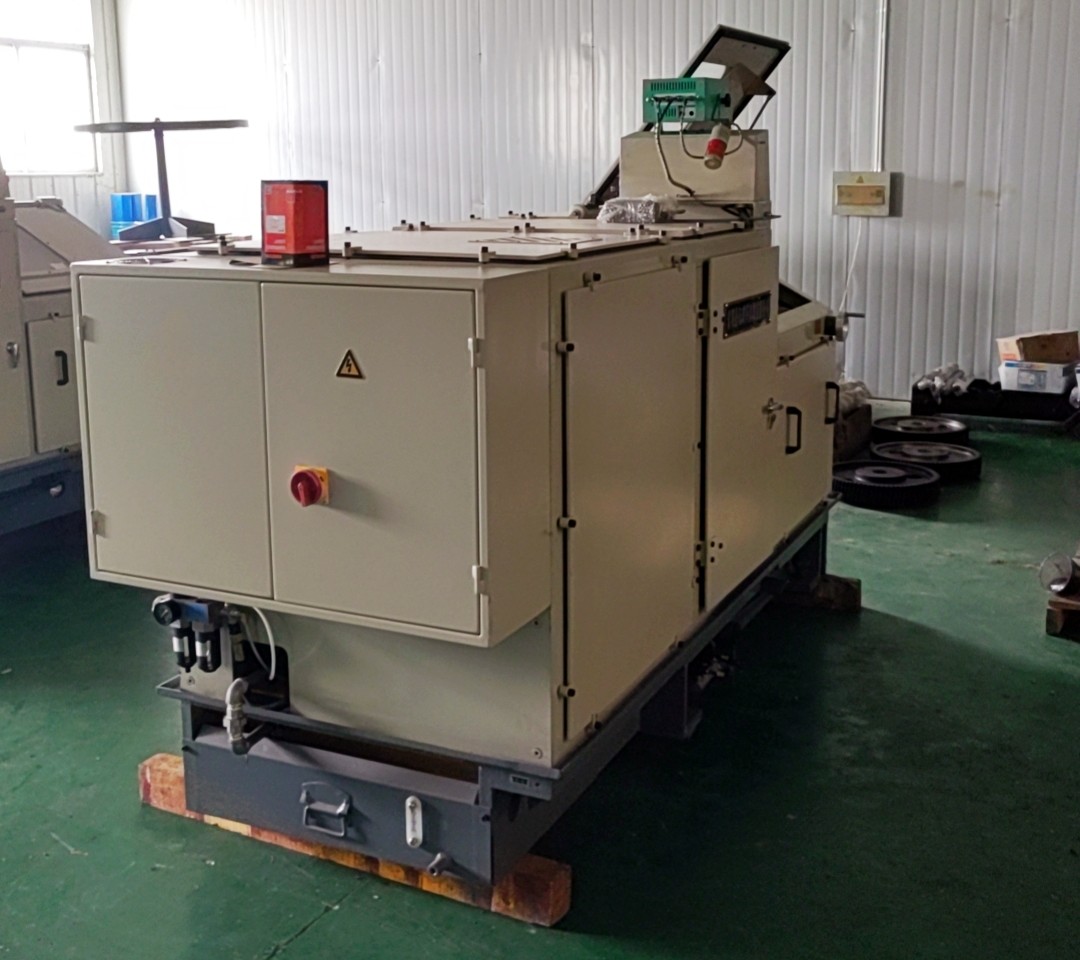

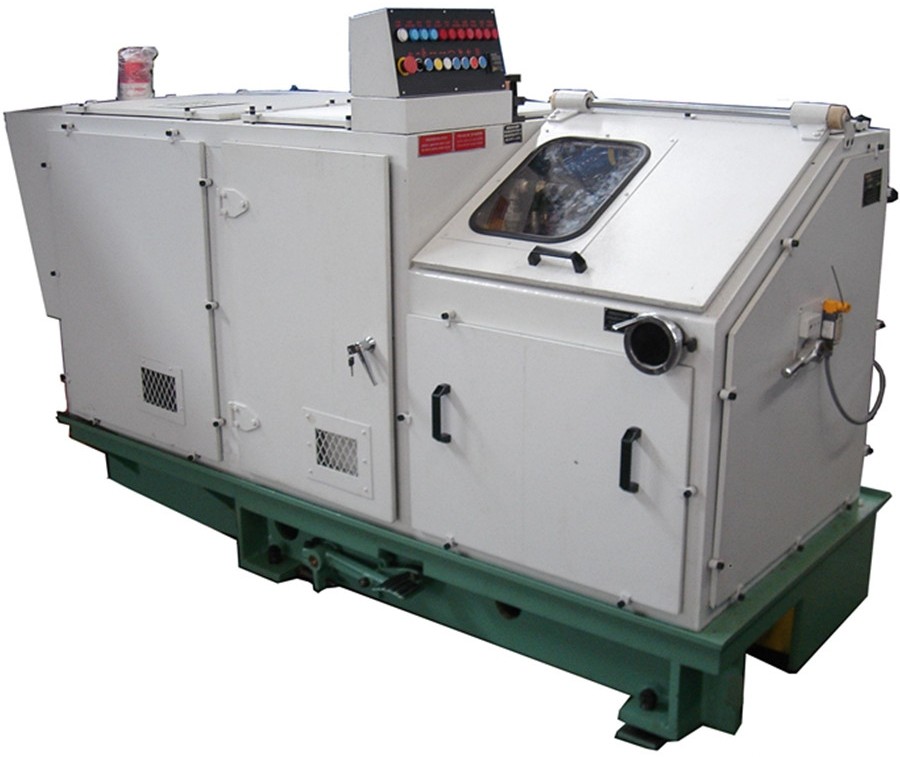

High Speed Steel Ball Making Machine Automatic

Product Description

High Speed Steel Ball Making Machine

Introduction

This machine is designed to manufacture high quality ball-blanks with bearing steel materials such as: GB GCr15, AISI 52100, DIN 100Cr6; stainless steel materials like: AISI 304, 316, 410, 420, 440, etc. and carbon steel ball-blanks with materials like: AISI1010, 1012, 1045 & 1085, etc. It is a form of newly-designed structure, with high efficiency, low noise disturbance, good production accuracy and high material utilizing ratio. Using industry-leading design sleeve material cutting, the product pressure deviation is small, effectively improving the precision of ball blank and saving 5%-8% of material loss more than the common speed machine. No anchoring bolts are necessarily needed for machine installation, hence providing much convenience to end-users.

Technical Specifications

Model	ZS32-5	ZS32-8	ZS32-11	ZS32-14
Max Dia. of Steel-ball(mm)	5	8	11	14
Min Dia. of Steel-ball(mm)	2.5	3.5	5	7.5
Rated Output (pcs/min.)	700	600	420	350
Motor Power(kw)	5.5	11	30	30
Weight(kg)	3700	4200	11500	11500
Overall Dimensions(L.W.H)(mm)	2600×998×1628	2850×1080×1685	5000×1700×2200	5000×1700×2200

High Speed Steel Ball Making Machine Automatic 0

High Speed Steel Ball Making Machine Automatic 1

High Speed Steel Ball Making Machine Automatic 2

High Speed Steel Ball Making Machine Automatic 3
