OTO Type Wire Drawing Machine for Wire Processing

1 SET
MOQ
to be negotiated
Price
OTO Type Wire Drawing Machine for Wire Processing
Features Gallery Product Description Request A Quote
Features
Specifications
Name: OTO Type Wire Drawing Machine For Wire Processing
Outlet Diameter: 0.75-2.5mm
Power: 4.5~18.5KW
Weight: 1000~2000 KGS
Machine Type: OTO Type
Inlet Diameter: 2.5-6.5mm
Voltage: 380/415/440/220V
Dimension(L*W*H): 1400x800x1500mm
Certification: As Per Customer's Request
Showroom Location: None
Key Selling Points: Easy To Operate
High Light:

2.5mm oto wire drawing machine

,

oto wire drawing machine horizontal

,

wire drawing machine in turkey

Basic Infomation
Place of Origin: Jiangsu, China
Brand Name: DURA
Certification: CE
Model Number: LW-560, LW-450, LW-350
Payment & Shipping Terms
Packaging Details: Nude Package
Delivery Time: 1-100 Pieces/15 Days; >100 To Be Negotiated
Payment Terms: L/C, D/P, T/T
Supply Ability: 100 Sets Per Month
Product Description

OTO Type Wire Drawing Machine for Wire Processing

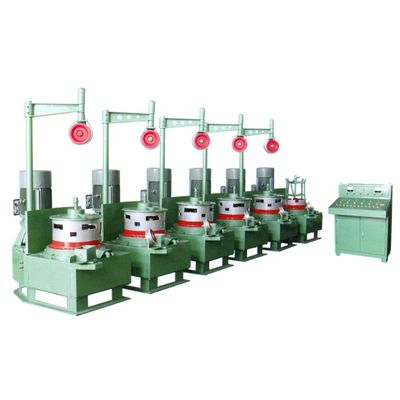

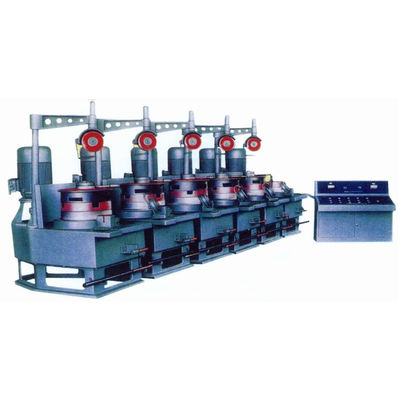

LW Series Pulley Type Wire Drawing Machine


Usage This kind of machine is an ideal equipment applied to draw high-, medium- and low-carbon steel wire , as well as copper,alumium and alloy wire, the machine is applied to draw wires in nail, screw and rivet making factories etc.

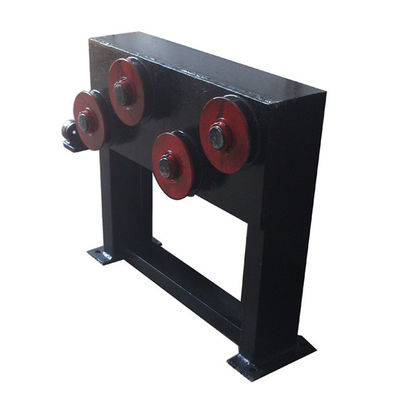

Structure The equipment consists of main reduction box ,die casing , wheel frame ,wire brace and electrical control system . the spinning drawing blocks are driven by JZT or Y series motor ,with gear coupling runs changeful gears to reduce speed. The drawing blocks are vertically fixed in sealed box body , the gear pair are lubricated with oil. In order to lower residual heat on the surface of the block ,the cooling device is installed in inter-wall of the block.

The machine runs with carwl or linkage. The safety halt gear is installed by the position of operation block.



Item   Continuous Multi-block Type
Model Unit LW- n/ 560 LW-n/450 LW-n/350
Max. drawing pass (n)   n: 1 - 10 n: 1 – 8 n: 1- 8
Tensile strength of wire rod Kg/mm2 >110 128 >140
Max. dia. of wire rod mm 6.5 3.4 2.5
Min. dia. of finished wire mm 2.5 1 0.75
Typical configuration -- LW1- 6/560 LW1-7/450 LW1-6/350
Max. average reduction percent % 30 20 21
Designed total reduction percent % 78-88.5 77.9 78
Max. speed of block m/min. 245 (block. 6) 346.9 (block. 7) 200 (block 6)
Total power kw 18.5-30 7.5-11 7.5-11
Weight kg 2000 1500 1000
Overall dimensions(L×W×H) mm 1700x1150x1750 1520x810x1700 1400x800x1500



OTO Type Wire Drawing Machine for Wire Processing 0
