High Performance Pulley OTO Type Dry Wire Drawing Machine

High Performance Pulley OTO Type Dry Wire Drawing Machine
Features Gallery Product Description Request A Quote
Name: Dry Drawing Type Wire Drawing Machines, Pulley Type/OTO Type
Outlet Diameter: 0.75-2.5mm
Power: 4.5~18.5KW
Weight: 1000~2000
Warranty: One Year
After Warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance
Local Service Location: None
After-sales Service Provided: Rovided: Engineers Available To Service Machinery Overseas
Machine Type: OTO Type
Inlet Diameter: 2.5-6.5mm
Voltage: 380/415/440/220v
Dimension(L*W*H): 400x800x1500
Certification: As Per Customer's Request
High Light:

oto type wire drawing machines


Pulley Type wire drawing machines


OTO Type Dry Wire Drawing Machine

Basic Infomation
Place of Origin: Jiangsu, China
Brand Name: DURA
Model Number: LW-560, LW-450, LW-350
Payment & Shipping Terms
Packaging Details: Nude Package
Delivery Time: 1-10 Sets/30 Days; ≥10 To Be Negotiated
Payment Terms: L/C, D/P, T/T
Supply Ability: 100 Sets Per Month
Product Description

High Performance Dry Drawing Type Wire Drawing Machines, Pulley Type/OTO Type

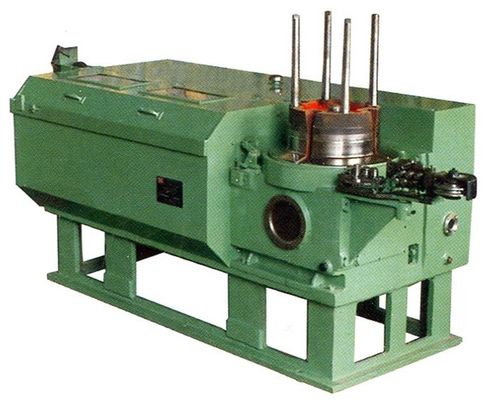

LW Series Pulley Type Wire Drawing Machine



This kind of machine is an ideal equipment applied to draw high-, medium- and low-carbon steel wire , as well as copper,alumium and alloy wire, the machine is applied to draw wires in nail, screw and rivet making factories etc.



The equipment consists of main reduction box ,die casing , wheel frame ,wire brace and electrical control system . the spinning drawing blocks are driven by JZT or Y series motor ,with gear coupling runs changeful gears to reduce speed. The drawing blocks are vertically fixed in sealed box body , the gear pair are lubricated with oil. In order to lower residual heat on the surface of the block ,the cooling device is installed in inter-wall of the block.


The machine runs with carwl or linkage. The safety halt gear is installed by the position of operation block.

Item unit Continuous Multi-block Type
Model   LW- n/ 560 LW-n/450 LW-n/350
Max. drawing pass (n)   n: 1 - 10 n: 1 – 8 n: 1- 8
Tensile strength of wire rod Kg/mm² >110 128 >140
Max. dia. of wire rod mm 6.5 3.4 2.5
Min. dia. of finished wire mm 2.5 1 0.75
Typical configuration -- LW1- 6/560 LW1-7/450 LW1-6/350
Max. average reduction percent % 30 20 21
designed total reduction percent % 78-88.5 77.9 78
Max. speed of block m/min 245 (block. 6) 346.9 (block. 7) 200 (block 6)
Total power kw 18.5-30 7.5-11 7.5-11
weight kg 2000 1500 1000
Overall dimensions mm 1700x1150x1750 1520x810x1700 1400x800x1500
